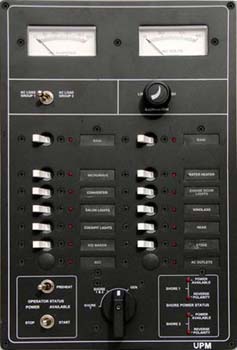

ITEM: AC Control Panel
P/N:
Black 1650-02 White 1650-02W DESCRIPTION:
Standard Features: TWO LOAD GROUPS: EACH CONSISTS OF: - Double Pole Master Breaker - Reverse Polarity Warning Light - 6 Branch circuit breakers, 5 installed std. 1 (10A), 2 (15A), 2 (20A) - Circuit "on" Indicator Lights AC SOURCE SELECTOR SWITCH FOR TWO SHORE LINES, A 15 KW generator and two loadsgroup: - Load group 1 operates from shore 1 or generator - Load group 2 operated from shore 1, shore 2 or generator - Switch for selecting readings from load group 1 or 2 - Dimmer for meter illumination (AC volt 0-150, AC amp 0-50) - Backlit Panel - Size: 15" H x 10" W
|
|
||
 |
|
 |
||
